Name: HRSHRPilot Operated Relief Valve amp Solenoid Control Relief Valves Pressure Control Valves
Brand: Jeou Gang
Price: 1 USD

Brand Name : Jeou Gang

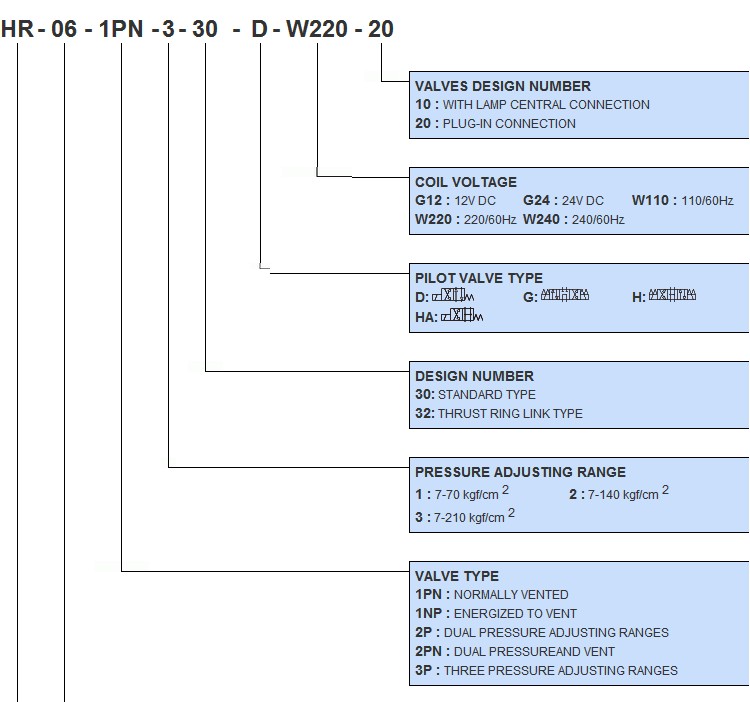

Model Number : HR-06-1PN-3-30-D-W220-20

Place of Origin : Taiwan

MOQ : 1

Price : contact

Payment Terms : TT

Supply Ability : 100unit / month

Delivery Time : 15 days

Contact Now

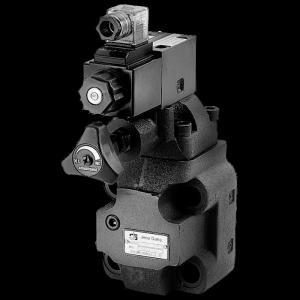

HR.SHR.Pilot Operated Relief Valve & Solenoid Control Relief Valves Pressure Control Valves

MODLE		MAX. OPERATING PRESSURE (kgf/cm ² )	PRESSURE ADJ. RANGE kgf/cm ²	MAX. FLOW l/min	WEIGHT (NO CONTAIN ELECTRO MAGNETIC) (kg)
MODLE		MAX. OPERATING PRESSURE (kgf/cm ² )	PRESSURE ADJ. RANGE kgf/cm ²	MAX. FLOW l/min	HR-※	SHR-※-1PN	SHR-※-2PN	SHR-※-3PN
HR-06	SHR-06-※	250	1 : 7-70 2 : 7-140 3 : 7-210	200	7.6	7.6	10.2	10.3
HR-10	SHR-10-※			400	23.5	23.5	24.8	24.8

HR.SHR.Pilot Operated Relief Valve & Solenoid Control Relief Valves Pressure Control Valves

MODLE		SOC HOL CAP SCREW
HR-06	SHR-06-※	M16 X 85L.....4pcs
HR-10	SHR-10-※	M20 X 95L.....4pcs
